Control Gear Assembly For Motor Drive Unit



Control Gear Assembly For Motor Drive Unit

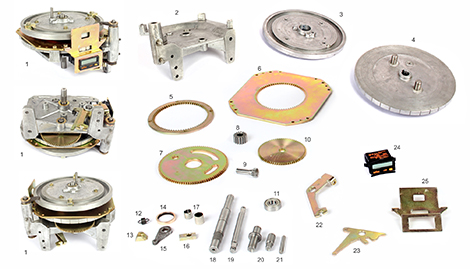

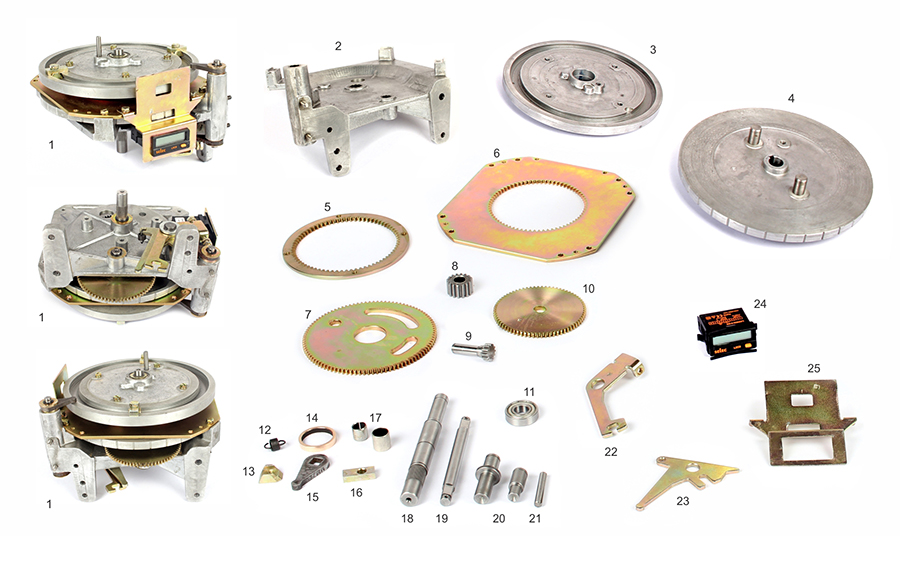

  1. Control Gear Assembly
  2. Supporting Plate
  3. Position Indicating Wheel
  4. Step By Step Indicating Wheel
  5. Inner Gear Rim
  6. Inner Cog Plate
  7. Inner Gear
  8. Planet Wheel
  9. Pinion Shaft
  10. Intermediate Wheel
  11. Ball Bearing
  12. Tension Spring
  13. Block
  14. Bearing Bush
  15. Lever
  16. Stopper
  17. DU Bush
  18. Knurling Shaft
  19. Double Lever Shaft
  20. Bearing Bolt
  21. Grooved Pin
  22. End Position Lever Mechanical
  23. End Position Lever Electrical
  24. Digital Counter
  25. Screen
