On Load Tap Changer Components For Power Transformers

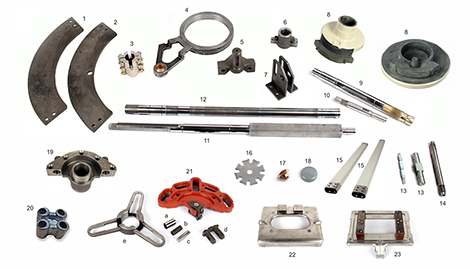

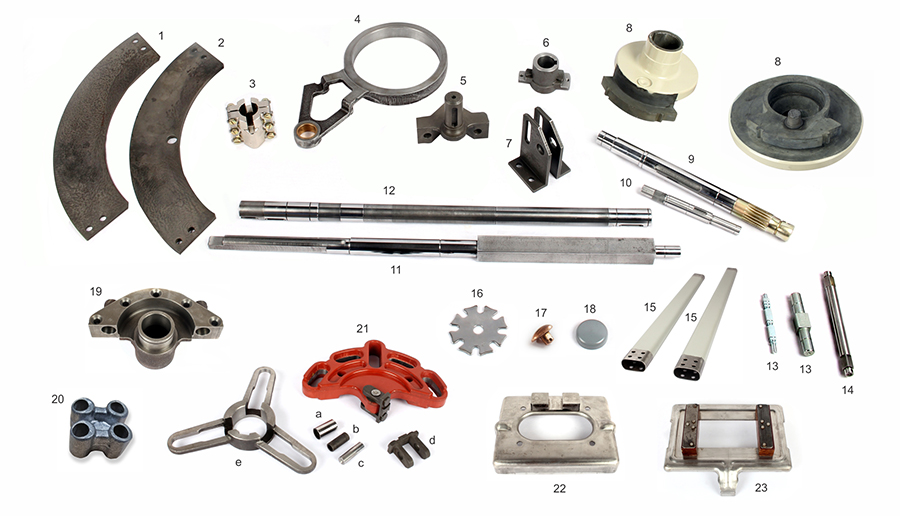

On Load Tap Changer Components For Power Transformers

  1. Base Plate
  2. Covering Plate
  3. Coupling Bracket Assembly
  4. End Position Stopper Assembly with PB Bush
  5. Upper Coupling
  6. Coupling Dog
  7. Linkage Support
  8. Switch Crank
  9. Driving Shaft with Gear
  10. Knurling Shaft
  11. Square Shaft Long
  12. Drive Shaft
  13. Square Shaft
  14. Double Lever Shaft
  15. Driving Tube (Powder Coated)
  16. Geneva Wheel
  17. Contact Button
  18. Contact Cap
  19. Hub
  20. Spacer
  21. Switch Segment Assembly:
    • Roller
    • Spacer Tube
    • Bearing Bolt
    • Spring Fork
    • Drive Star
  22. Cocking Slide
  23. Winding Up Slide
